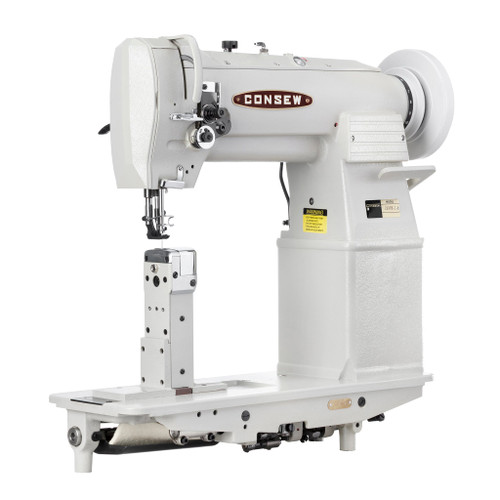

Consew 289RB-HRP-2 Bobbin on Right of Needle Single Needle Extra High Post Bed Walking Foot Industrial Sewing Machine with Table and Servo Motor
Complete Package: Machine Comes Fully Assembled with Table, Stand, and Servo Motor
Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Rotary Hook and Bobbin, Reverse Feed, Safety Clutch
MACHINE APPLICATIONS:
- For sewing medium to heavy weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- For stitching uneven, hollow, tubular and curved articles
- Designed for stitching such products as boots, shoes, gloves, luggage, handbags, overalls, raincoats, bags, umbrellas, awnings, covers, tarpaulins, tents, sports and camping equipment, wearing apparel, outdoor clothing, etc.
- Suitable for edge stitching operations
MACHINE FEATURES:
- Centra-Lube® semi-automatic lubrication system
- Oil fed take-up
- Extra high post
- Safety clutch prevents the hook from being damaged
- Large bobbin allows for longer operation
- Large vertical axis hook allows for use of thick thread and therefore ornamental stitching can be obtained
- Compound feed, walking foot mechanism assures even feeding of material
- Reverse stitching
- Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material
MACHINE SPECIFICATIONS:
- Number of Needles: 1 (Single)
- Feeding Mechanism: Walking Foot
- Workspace: Standard Workspace
- Standard or Full Function: Standard Functions
- Speed, Max (S.P.M.): 2200
- Clearance Under Presser Foot: Hand 5/16" (8.5mm) Foot 5/8" (16mm)
- Stitch Length: 4 s.p.i. (6.2mm)
- Needle: 135 x 17
- Bobbin: Pre-Wound S and U
- Bed Size: 7" x 20 3/8" (178mm x 518mm)
- Stitch Type: 301
- Needle Bar Stroke: 1 13/32" (35.3mm)
- Hook: 14119
- Post Height: 17 7/16" (443mm)
- Work Surface: 2 1/8" x 2" (54mm x 51mm)
THE ADVANTAGES OF A SERVO MOTOR:
- Silent and use up to 90% less power than clutch motors
- 1/3 lighter than clutch motors
- With a flick of the switch you can reverse motor rotation
- No parts to wear out or adjust
- Lightweight, precise, and reliable
Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
